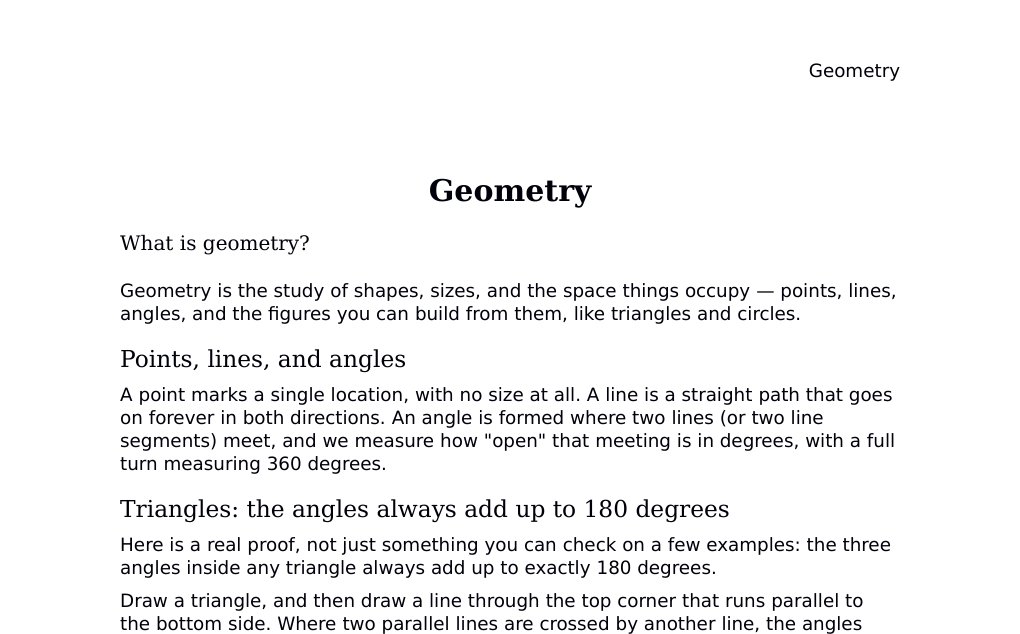

Geometry

What is geometry?

Geometry is the study of shapes, sizes, and the space things occupy — points, lines, angles, and the figures you can build from them, like triangles and circles.

Points, lines, and angles

A point marks a single location, with no size at all. A line is a straight path that goes on forever in both directions. An angle is formed where two lines (or two line segments) meet, and we measure how "open" that meeting is in degrees, with a full turn measuring 360 degrees.

Triangles: the angles always add up to 180 degrees

Here is a real proof, not just something you can check on a few examples: the three angles inside any triangle always add up to exactly 180 degrees.

Draw a triangle, and then draw a line through the top corner that runs parallel to the bottom side. Where two parallel lines are crossed by another line, the angles that match up on either side are equal — this is a basic fact about parallel lines. Using this fact twice, the two angles the new line makes with the top corner turn out to be exactly equal to the triangle's other two angles (the ones at the bottom-left and bottom-right corners). But the new line, together with the triangle's top angle, forms a straight line — and a straight line always measures 180 degrees. So the triangle's top angle, plus the two angles that match the bottom corners, must add up to 180 degrees — which means the triangle's own three angles add up to 180 degrees too.

The Pythagorean theorem, with a proof you can see

For any right triangle (a triangle with one 90-degree angle), if you call the two shorter sides a and b, and the longest side (opposite the right angle) c, then a² + b² = c². Here's a way to see why this is true, not just true in the examples you check.

Take four identical copies of the same right triangle, with legs a and b and hypotenuse c. Arrange them inside a large square with side length (a + b), so that they form a smaller, tilted square in the middle with side length c. The big square's area is (a + b)², which works out to a² + 2ab + b². That same big square is also made up of the four triangles (each with area ½ab, so 4 triangles give 2ab of area) plus the small tilted square in the middle (area c²). So a² + 2ab + b² = 2ab + c². Subtracting 2ab from both sides leaves a² + b² = c² — exactly the Pythagorean theorem, shown to be true by comparing two ways of measuring the very same area.

Circles

A circle is the set of all points that are the same distance from a fixed center point; that distance is the radius. The diameter is twice the radius — the full distance across the circle through its center. The distance around the circle (its circumference) is always a bit more than 3 times the diameter, no matter how big or small the circle is — that fixed ratio is the number we call pi (π), approximately 3.14159.

Why geometry matters

Geometry describes the physical world directly — the shape of a room, the angle of a roof, the distance between two points on a map — which is why it was one of the very first branches of mathematics to be developed, and why it remains the foundation for fields like architecture, engineering, and design.
